Nexus ELD is a self-serve ELD integration that brings truck location, odometer, speed, and driver hours of service into Datatruck.

Where: Settings > Integrations > ELD

Before You Start

Contact your Nexus ELD representative to request your API token:

To: your Nexus ELD representative
Subject: API Token Request — [Company Name]

Hi,

We are integrating Nexus ELD with our Datatruck TMS. Could you please provide our API token to complete the setup?

Our MC number is [MC Number].

Thank you,
[Your Name]
[Company Name]
[Phone Number]

Setup Steps

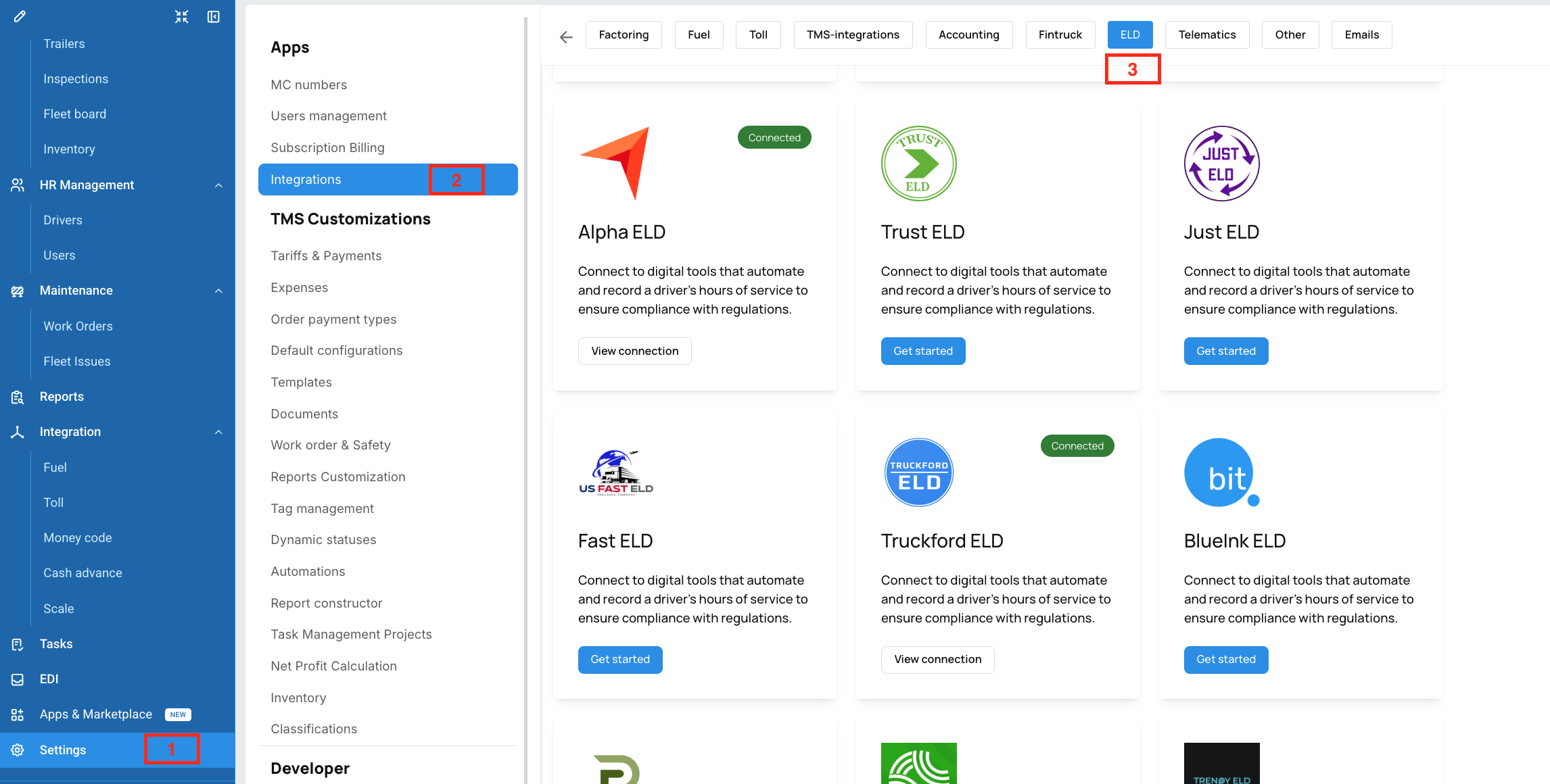

1. Go to Settings > Integrations > ELD

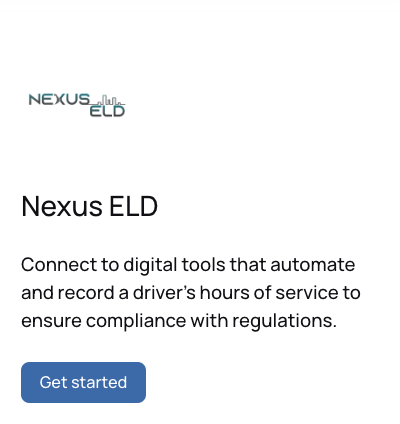

2. Find the Nexus ELD card and click Get Started (shows View Connection if already set up)



3. Click Create

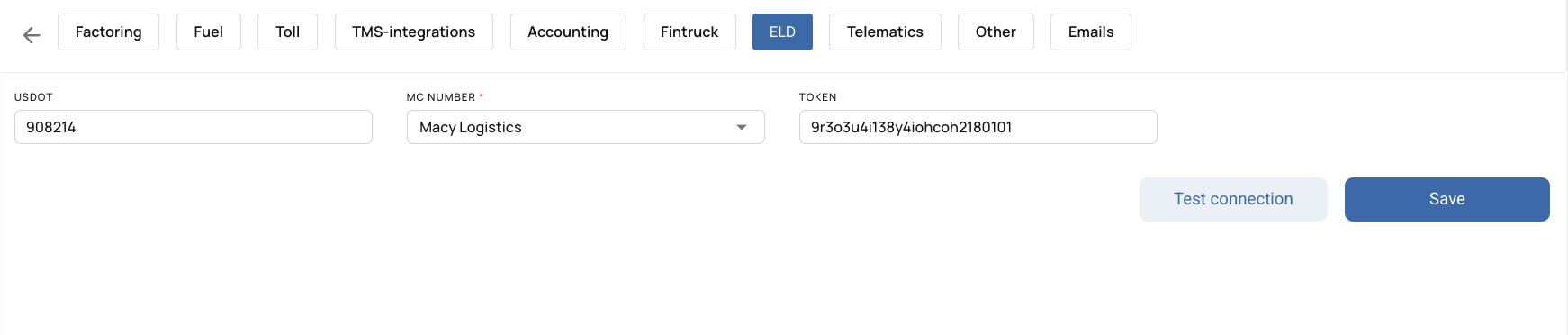

4. Fill in:
   • USDOT
   • MC Number
   • Token: paste your Nexus ELD API token here
5. Click Test Connection: you should see "Connection successful"
6. Click Save

What Syncs

Once connected, Nexus ELD brings in:

• Truck location
• Odometer
• Speed
• Driver Hours of Service

Important Notes

• Trucks are matched by VIN: the VIN in Datatruck must match exactly the one in Nexus. A mismatch means that truck won't receive location updates
• Drivers are matched by full name: the driver's name in Datatruck must match the name in Nexus (first/last order doesn't matter)
• If trucks aren't syncing after a successful connection, see: How To Sync/Update Telematics
