Skybitz is a self-serve telematics integration that syncs trailer location data into Datatruck. It tracks trailers, not trucks, check the Connected Trailers count after syncing.

Where: Settings > Integrations > Telematics

Before You Start

Contact your Skybitz representative to request your Client ID and Client Secret:

To: your Skybitz representative
Subject: API Credentials Request  [Company Name]

Hi,

We are integrating Skybitz with our Datatruck TMS. Could you please provide our Client ID and Client Secret to complete the setup?

Our MC number is [MC Number].

Thank you,
[Your Name]
[Company Name]
[Phone Number]

Setup Steps

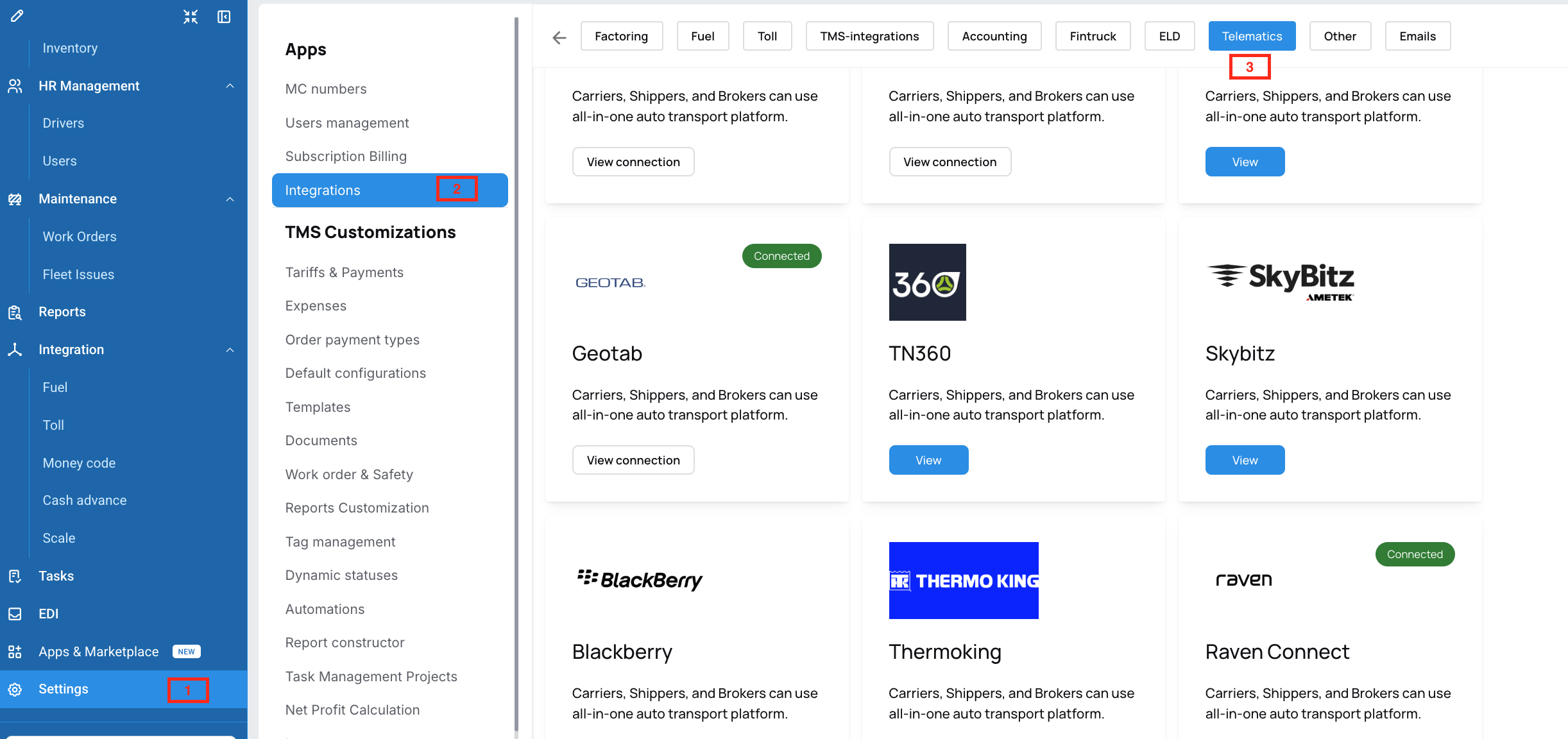

1. Go to Settings > Integrations > Telematics

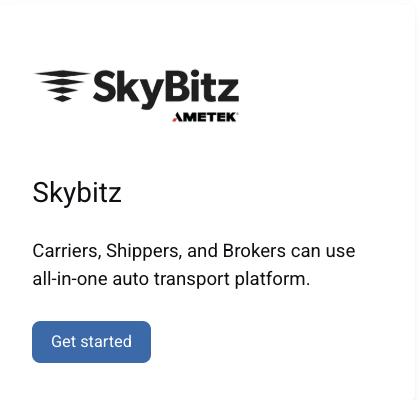

2. Find the Skybitz card and click Get Started




3. Select your MC Number

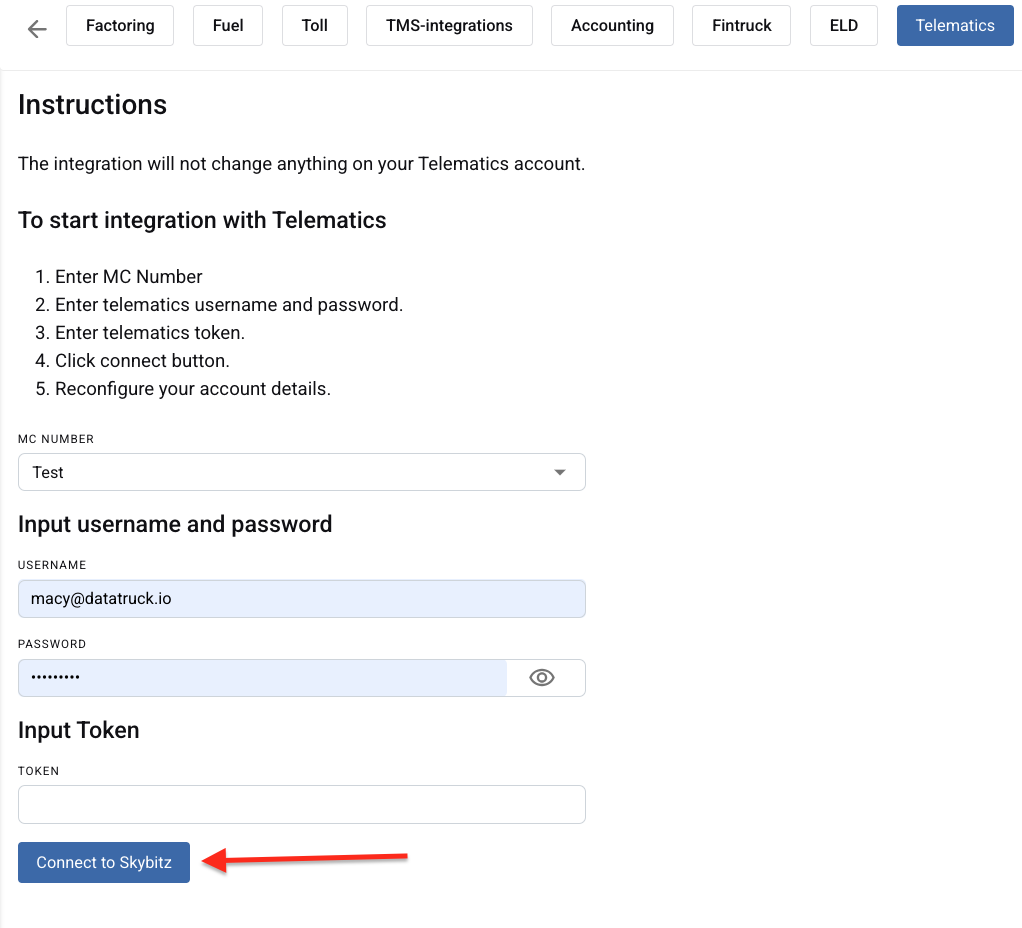

4. Enter the credentials

   • Username field > enter your Client ID

   • Password field > enter your Client Secret

   • Leave Token empty

5. Click Connect to Skybitz




6. On the details page, click Sync Trucks

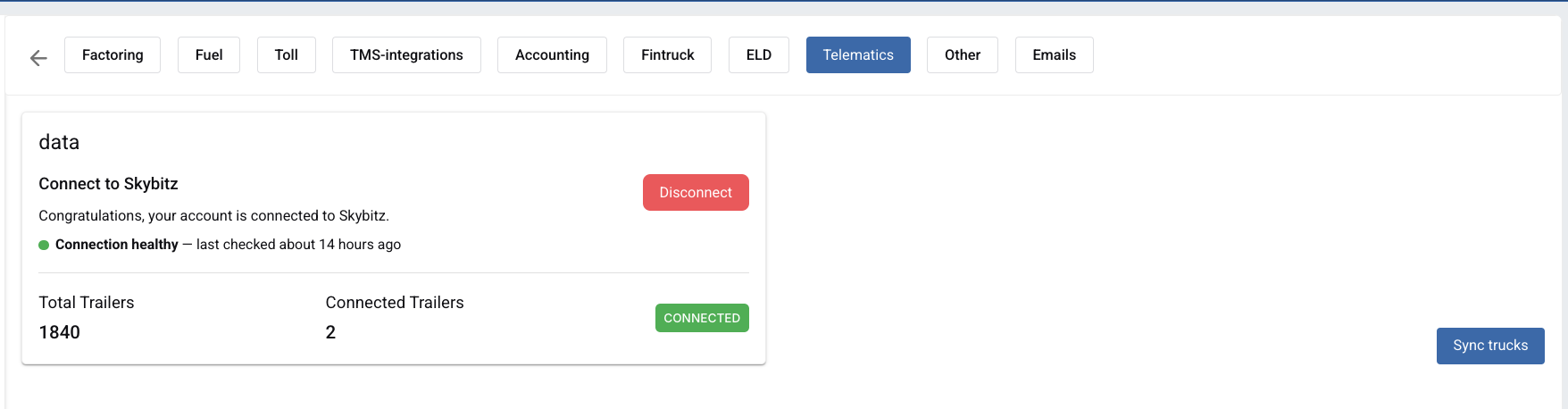

7. Compare Total Trailers with Connected Trailers. A gap means unit numbers don't match between Skybitz and Datatruck




8. In the Option / Send table, toggle on the data points you want synced and click Save

Important Notes

• Skybitz tracks trailers, not trucks, check Connected Trailers after syncing

• The credential fields have mismatched labels. Client ID goes in Username and Client Secret goes in Password. Leave Token empty

• There is no Test Connection button, a successful connect and sync confirms the integration is working

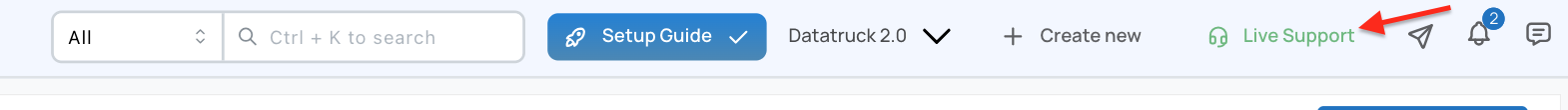

We hope this article was helpful. However, if you have any further questions, please don't hesitate to reach out to our Live Support.
​
​
