Sparkle ELD is a self-serve ELD integration that brings truck location data into Datatruck.

Where: Settings > Integrations > ELD

Before You Start

Contact your Sparkle ELD representative to request your API key:

To: your Sparkle ELD representative
Subject: API Key Request  [Company Name]

Hi,

We are integrating Sparkle ELD with our Datatruck TMS. Could you please provide our API key to complete the setup?

Our MC number is [MC Number].

Thank you,
[Your Name]
[Company Name]
[Phone Number]

Setup Steps

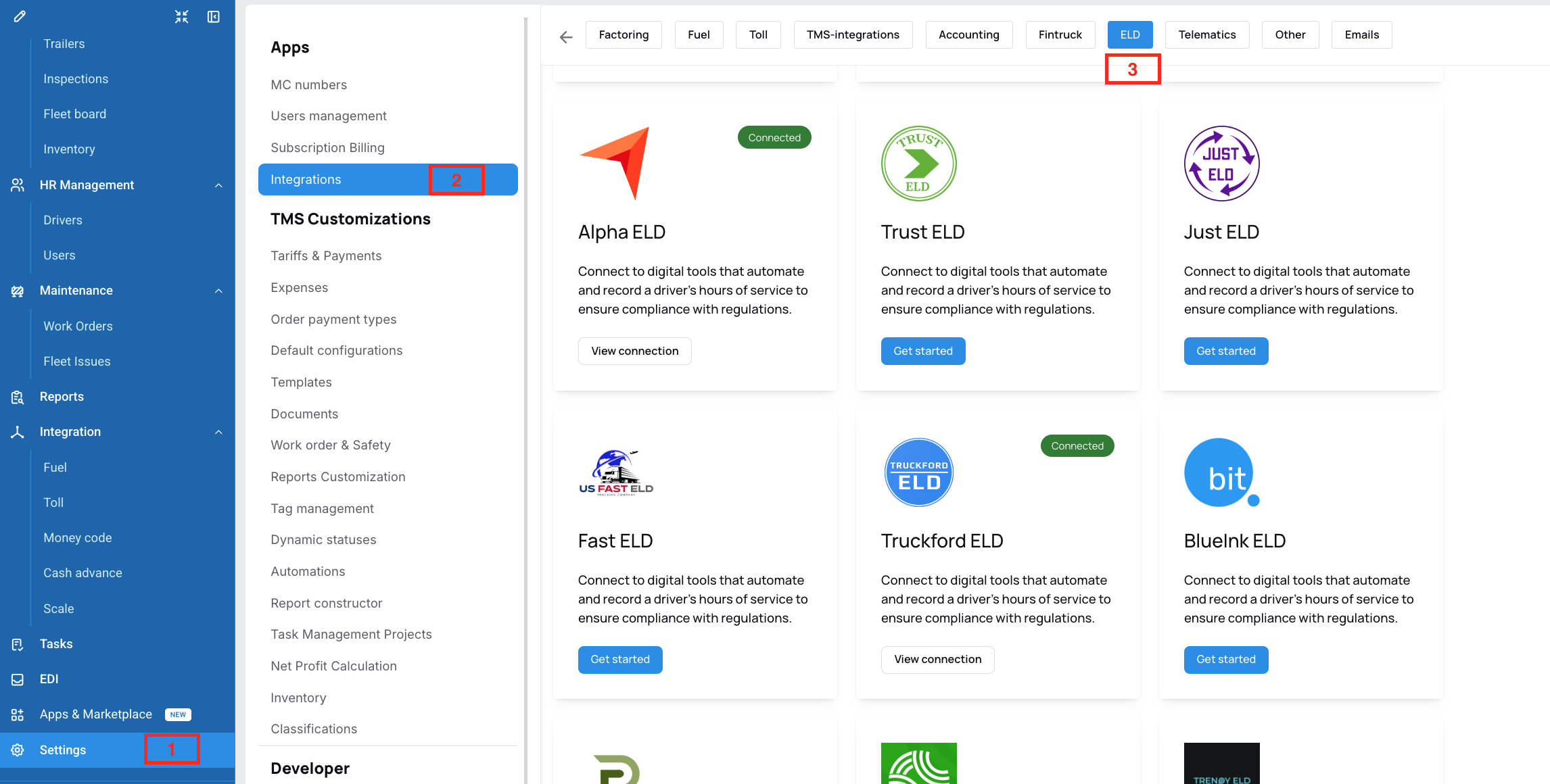

1. Go to Settings > Integrations > ELD

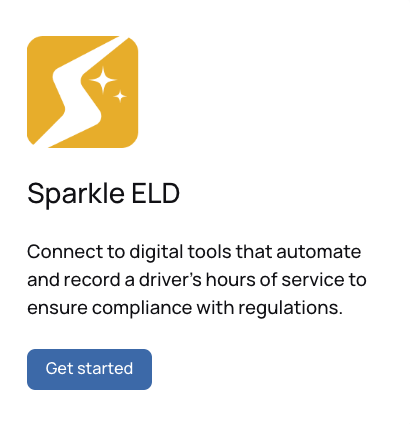

2. Find the Sparkle ELD card and click Get Started, then click Create




3. Select your MC Number

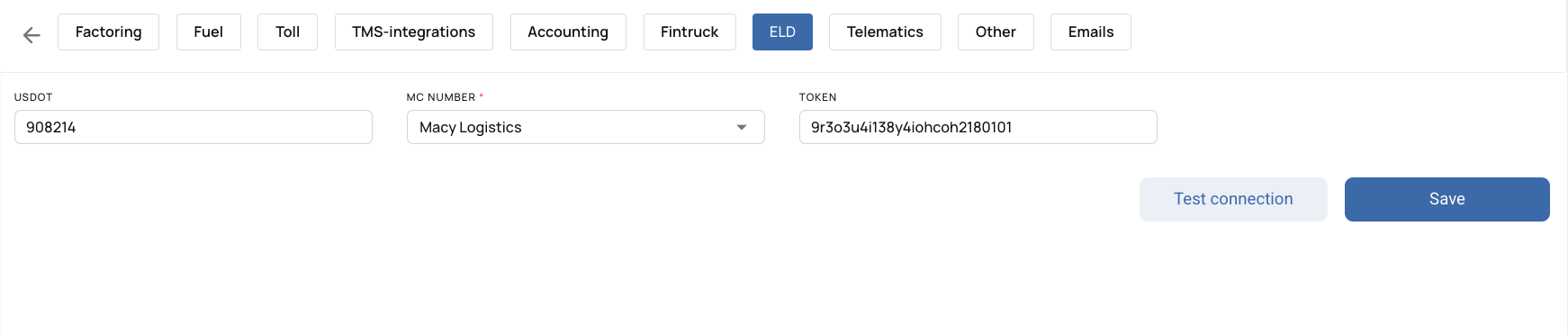

4. Paste your API Key into the API Key field

5. Click Test Connection, then click Save




6. Back on the integrations list, click the Sync icon on the Sparkle ELD row to pull in trucks immediately

Important Notes

• Trucks are matched by Unit Number:  the unit number in Datatruck must match exactly the one in your Sparkle ELD account. A mismatch means that truck will not receive location updates
